BH Series Slab Horizontal Single or Split Circuit Coils

Features and Benefits

APPLICATION VERSATILITY
• A2L refrigerants require a Refrigerant Detection System (RDS) for compliance.
• ETL listed for R22 and 410A. ETL listed for R454B and R32 with Refrigerant Detection System (RDS).
• AHRI certifiable with all brands of A/C and heat pump systems.

FEATURES
• Rifled copper tubing, enhanced aluminum fins.

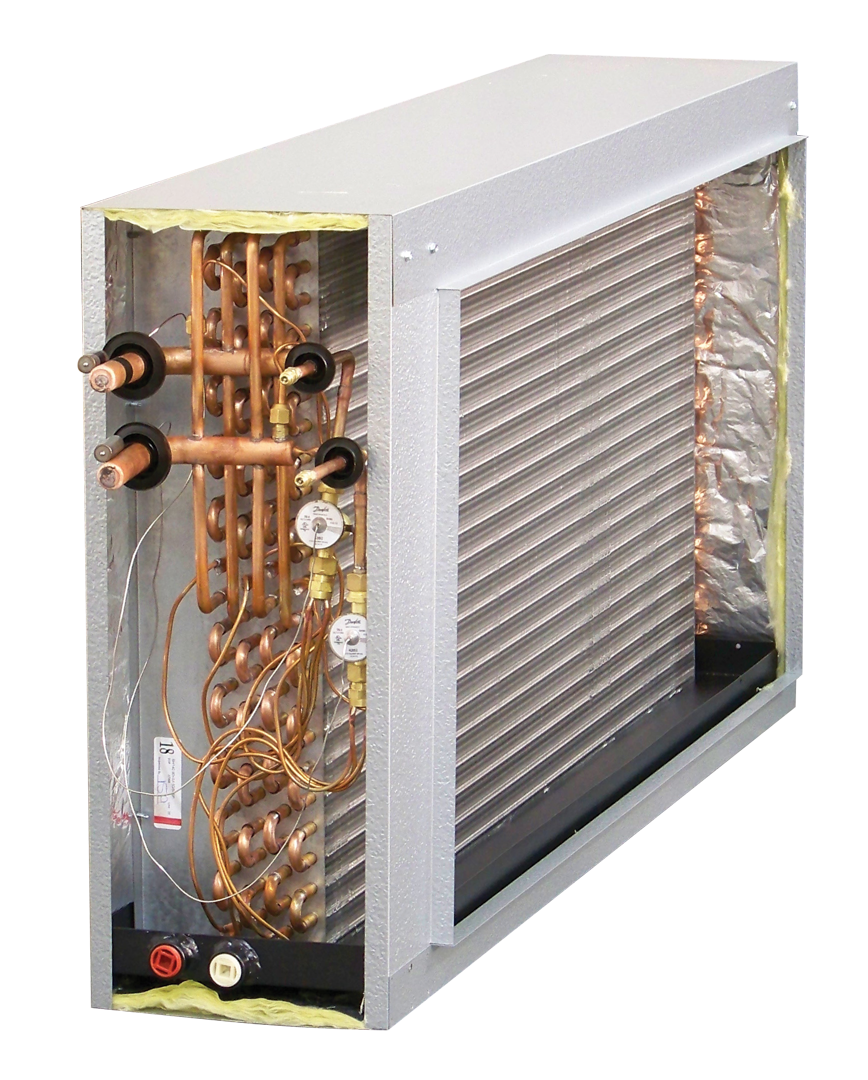

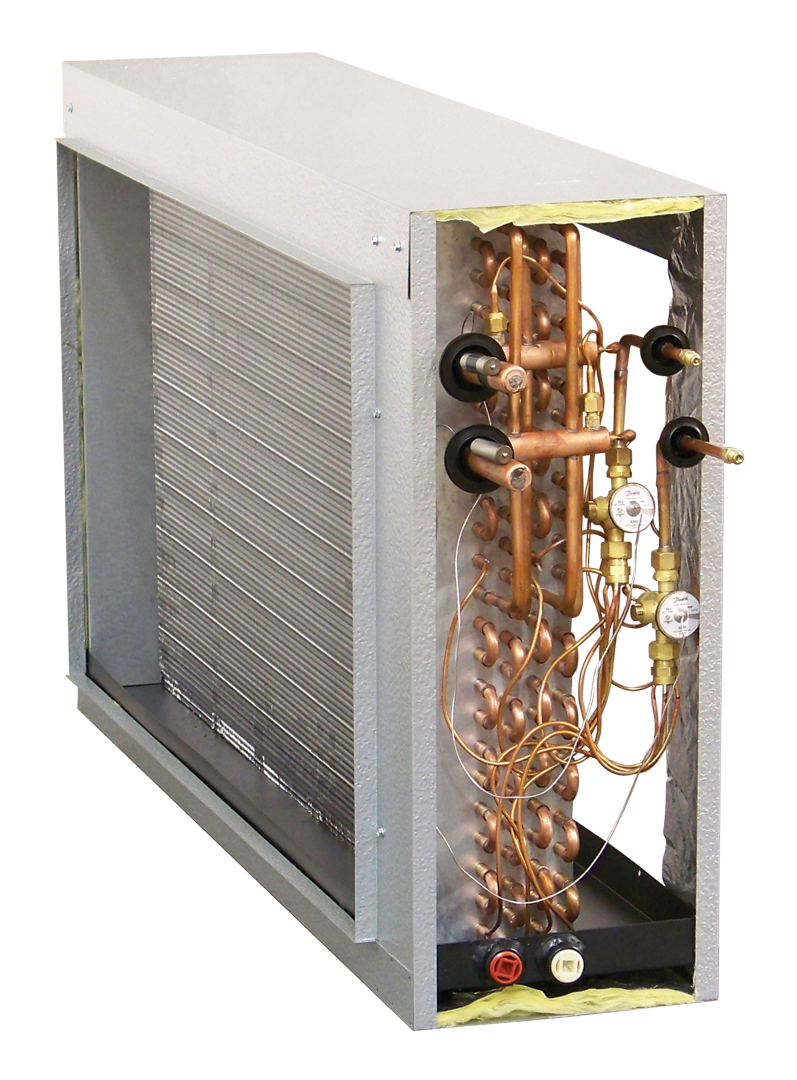

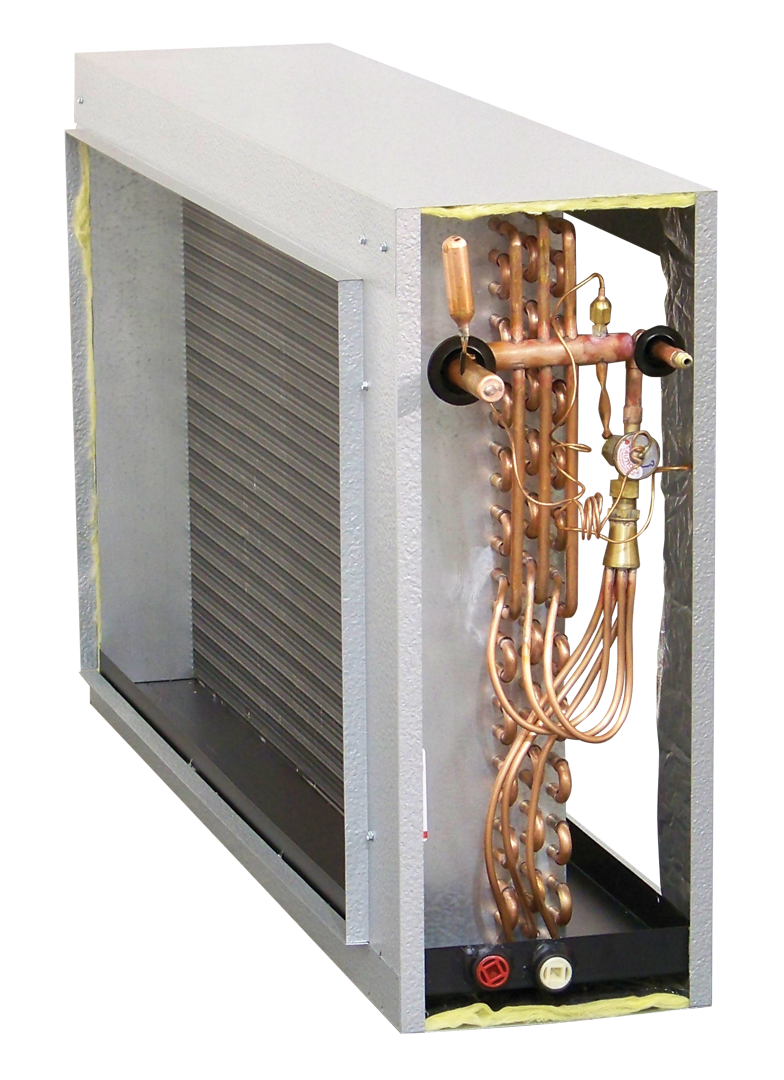

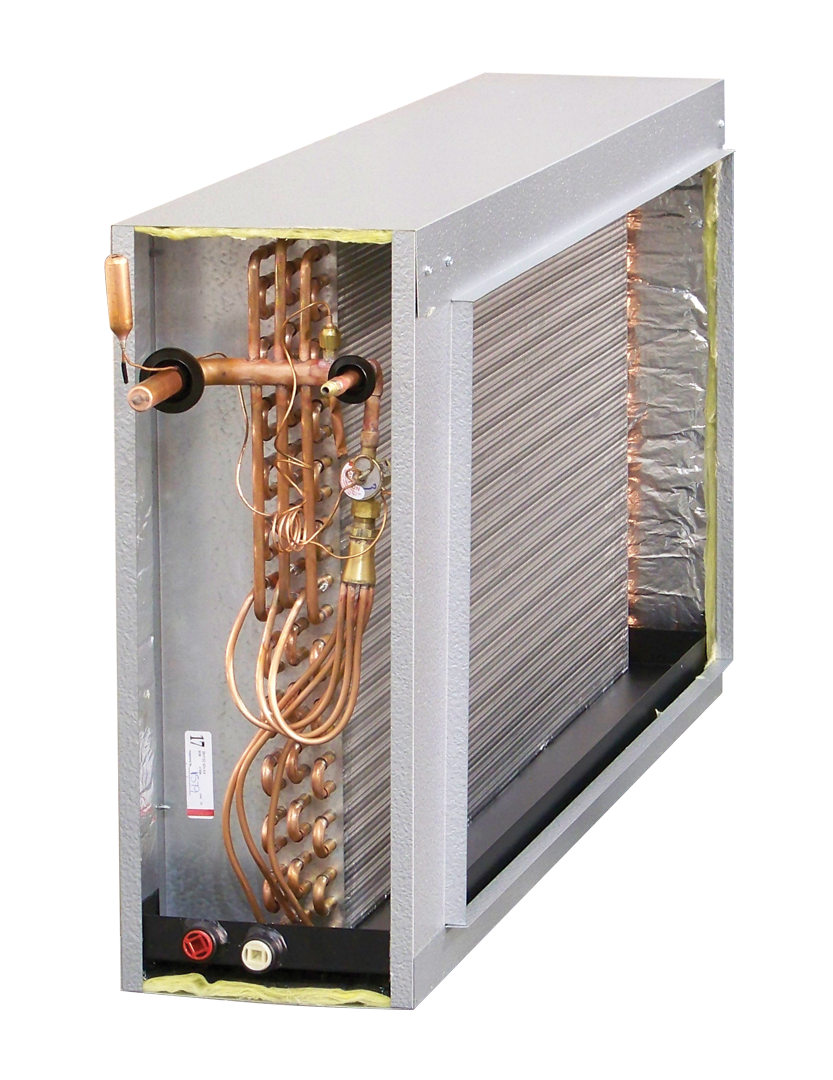

• Single circuit. Dual circuitry available. Dual circuit coils can be split top-to-bottom or interfaced.
• Powder-painted galvanized steel drain pans. Stainless available.
• Heavy gauge embossed galvanized cabinets fully lined with 1/2” faced insulation.
• Factory installed 20% bleed port TXV(s) standard.
• Single circuit. Dual circuitry available. Dual circuit coils can be split top-to-bottom or interfaced.
• Front access panel for easy service.

REFRIGERANT & PLUMBING CONNECTIONS:
— Liquid line – 3/8” ODS
— Suction line – 7/8″ ODS
— 3/4” MPT condensate drain
• Immersion tested at 500 psi, followed by nitrogen pressurization and factory sealed to ensure optimal system integrity and long-term reliability.

WARRANTY
Five-year limited warranty with registration.
