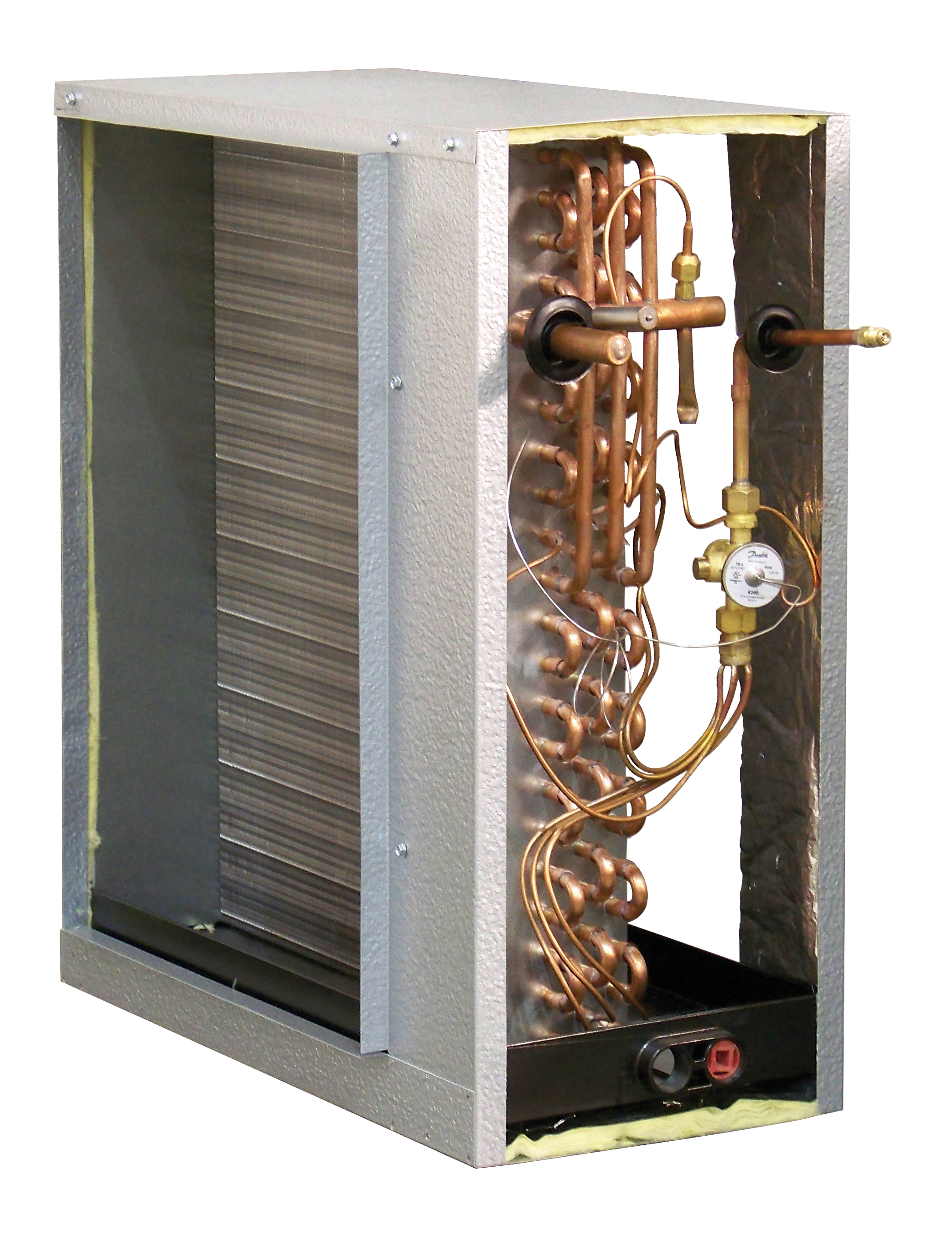

BHA/L Series Horizontal R410A Service Coils

Features and Benefits

APPLICATION VERSATILITY
• ETL listed for R410A. R410A products manufactured in 2025 or later will be labeled as “For servicing existing equipment only”.
• Bi-directional airflow.

FEATURES
• Rifled copper tubing, enhanced aluminum fins.
• Heavy gauge embossed galvanized cabinet fully lined with 1/2” faced insulation.
• Front access panel for easy service.
• Flowrator standard. Factory or field-installable TXV available.
• Drain Pan: Metal High Temp (600° Temp. Limit)
• Immersion tested at 500 psi, followed by nitrogen pressurization and factory sealing to ensure optimal system integrity and long-term reliability.

REFRIGERANT & PLUMBING CONNECTIONS:
• Standard refrigerant connections:
— Liquid line – 3/8” ODS
— Suction line:
• 3/4” ODS on 2-ton to 3-ton
• 7/8” ODS on 4-ton to 5-ton
— Condensate Drain: 3/4” NPT

WARRANTY
• Five-year limited warranty.
