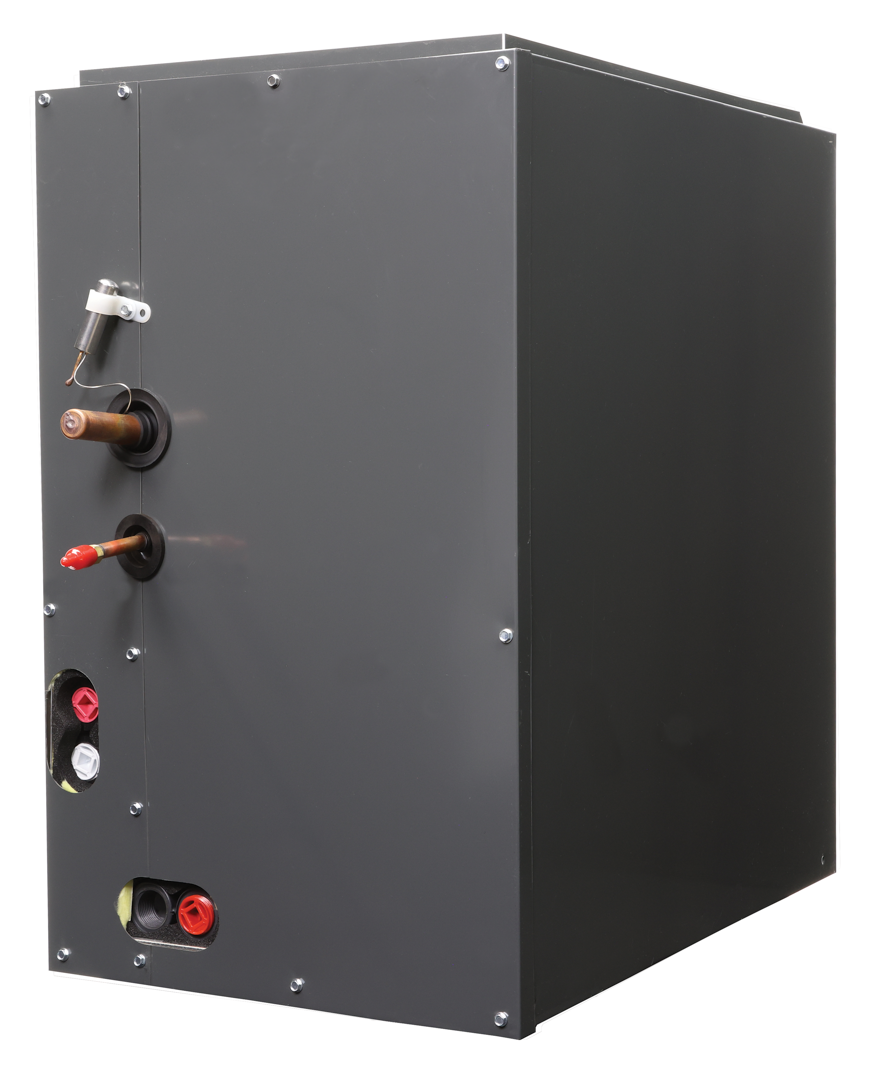

CE Series Cased Multi-Position Coils
Features and Benefits
APPLICATION VERSATILITY
• Standard Upflow without field modification. Downflow applications require field-installed downflow kit, sold separately.
• AHRI certifiable with all brands of A/C and heat pump systems.
• ETL listed for R22 and 410A. ETL listed for R454B and R32 with Refrigerant Detection System (RDS).
• A2L refrigerants require a Refrigerant Detection System (RDS) for compliance.
FEATURES

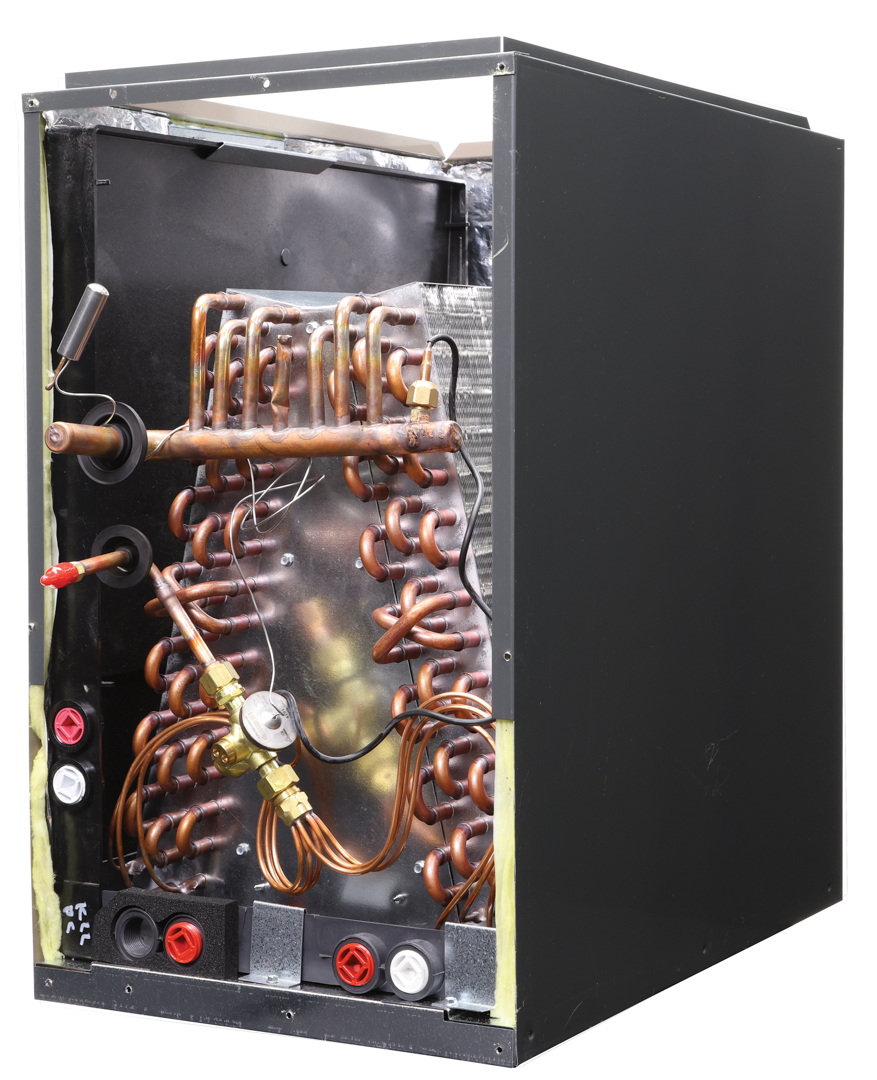

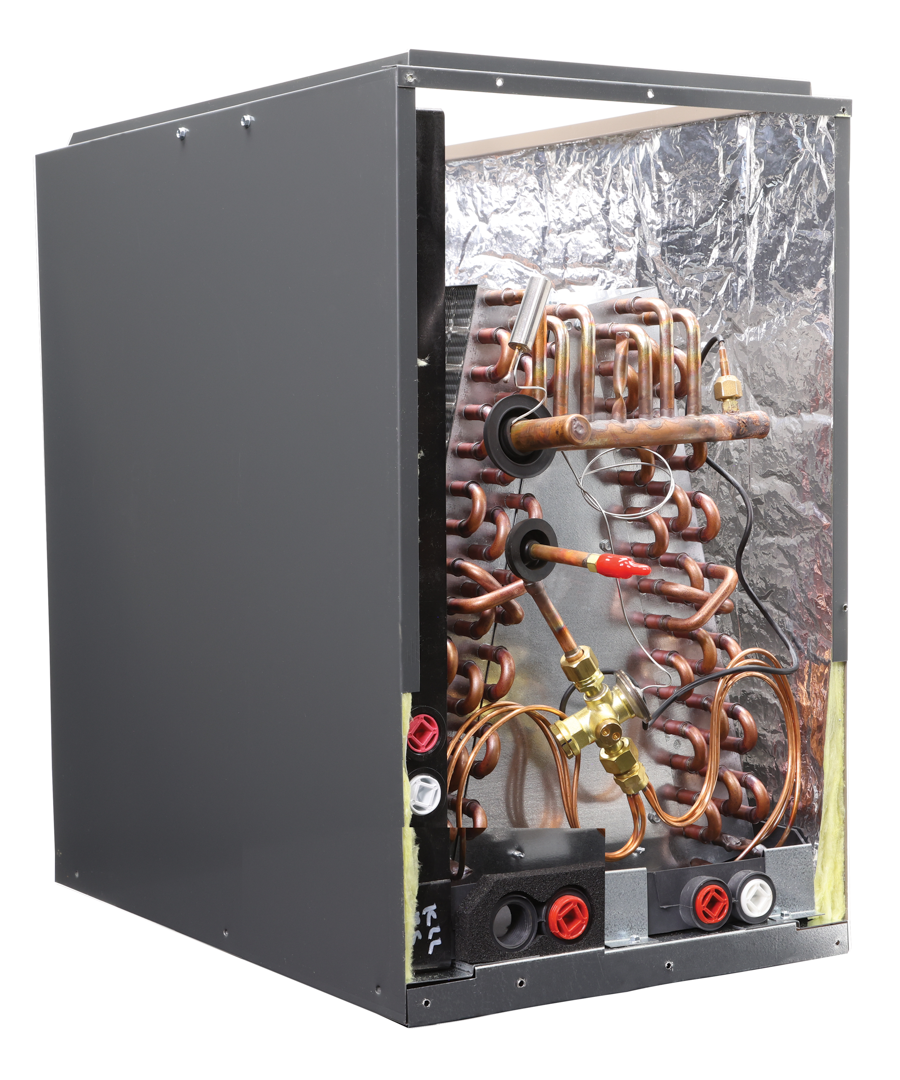

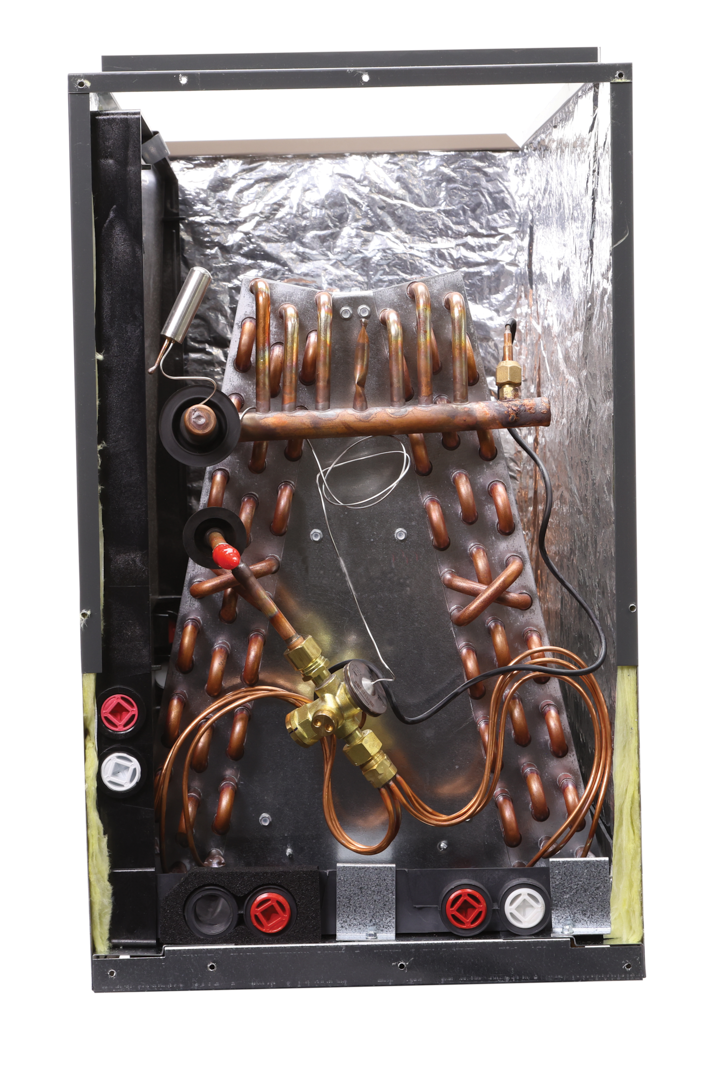

• Rifled copper tubing, enhanced aluminum fins.
• Fully insulated cabinets with faced insulation. Split access doors in front of cabinet for easy service access.
• Heavy duty plastic drain pans on most models, powder coated galvanized steel horizontal drain pans standard on all.
• Schrader provided for pressure assurance testing.
• Multi-stage leak testing at 500 psi pressure decay, mass spectrometer tested with Helium, then Nitrogen pressurized and factory sealed for maximum reliability.
REFRIGERANT & PLUMBING CONNECTIONS:

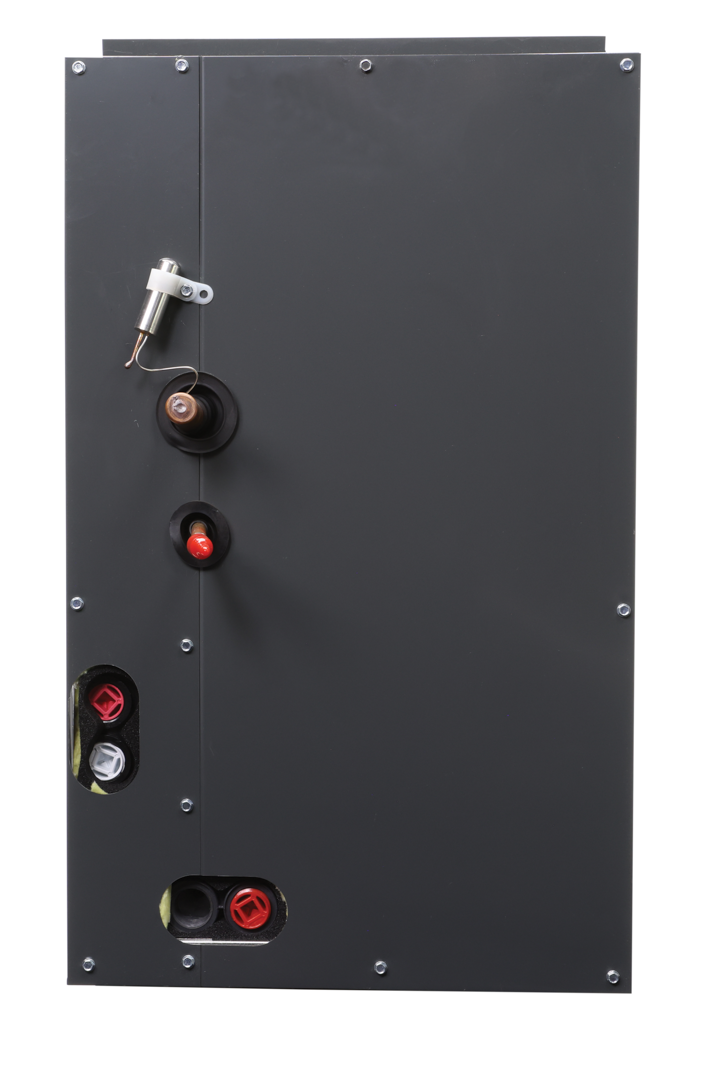

• Refrigerant lines exit top of coil. Schrader valve on liquid line or internally mounted factory installed TXV for pressure assurance testing. Refrigerant and plumbing connections:
— Condensate Drains: 3/4″ NPT
— Liquid line: 3/4” ODS
— Suction line:
• 3/4” ODS on 1-1/2-ton to 3-ton
• 7/8” on 3-1/2-ton to 5-ton
WARRANTY
• Ten-year limited warranty with registration.
Notes:
(1) Do not use plastic drain pans on oil furnaces or other applications where outlet temperature may exceed 290ºF +/- 5ºF. Metal drain pans are recommended for this type of application.
(2) Metal drain pan.
(3) Metal drain pan. Slab rotated 90º. Refrigerant and plumbing connections still exit in front. (4) Metal drain pan applicable for 4 row.
