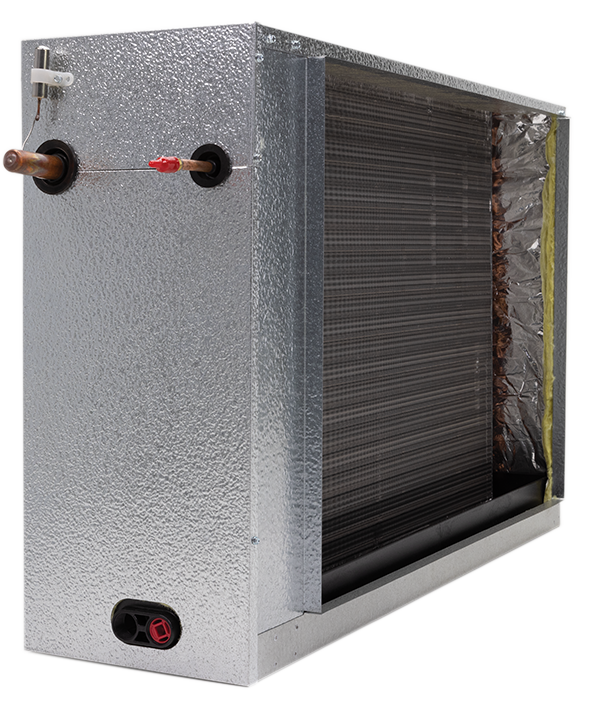

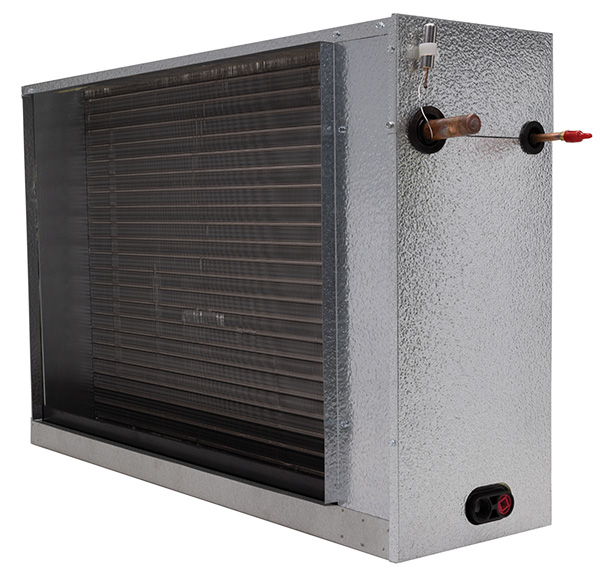

CH Series Slab Horizontal Coils

Features and Benefits

APPLICATION VERSATILITY
• AHRI certifiable with all brands of A/C and heat pump systems.
• ETL listed for R22 and 410A. ETL listed for R454B and R32 with Refrigerant Detection System (RDS).
• A2L refrigerants require a Refrigerant Detection System (RDS) for compliance.

FEATURES
• Rifled copper tubing, enhanced aluminum fins.
• Fully insulated cabinets with faced insulation.
• Split access doors in front of cabinet for easy service access.

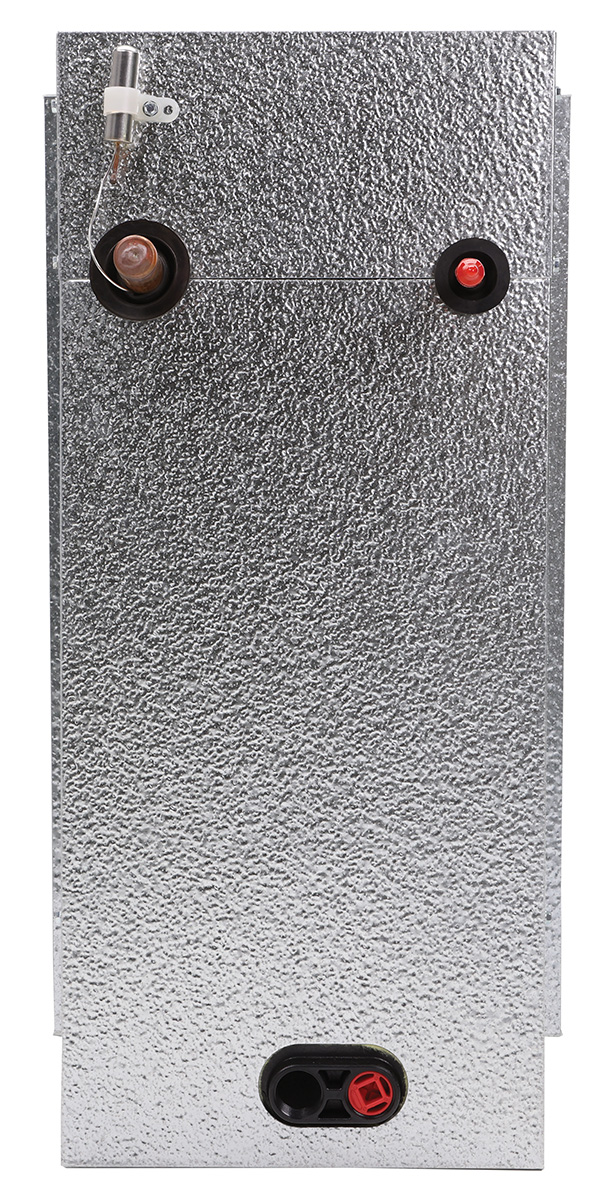

Refrigerant and plumbing connections:
• Immersion tested at 500 psi, followed by nitrogen pressurization and factory sealing to ensure optimal system integrity and long-term reliability.
• Schrader provided for pressure assurance testing with 3/8” ODS Stem mounted on end of Liquid Line.
— Condensate Drains: 3/4″ NPT
— Liquid line: 3/8” ODS
— Suction line:
• 3/4” ODS on 1-1/2-ton to 3-ton
• 7/8” on 3-1/2-ton to 5-ton

WARRANTY
Ten-year limited parts warranty with registration.
