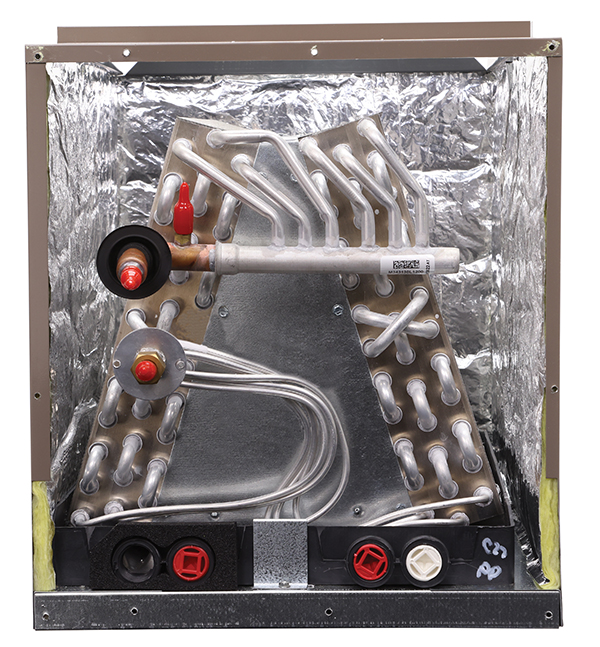

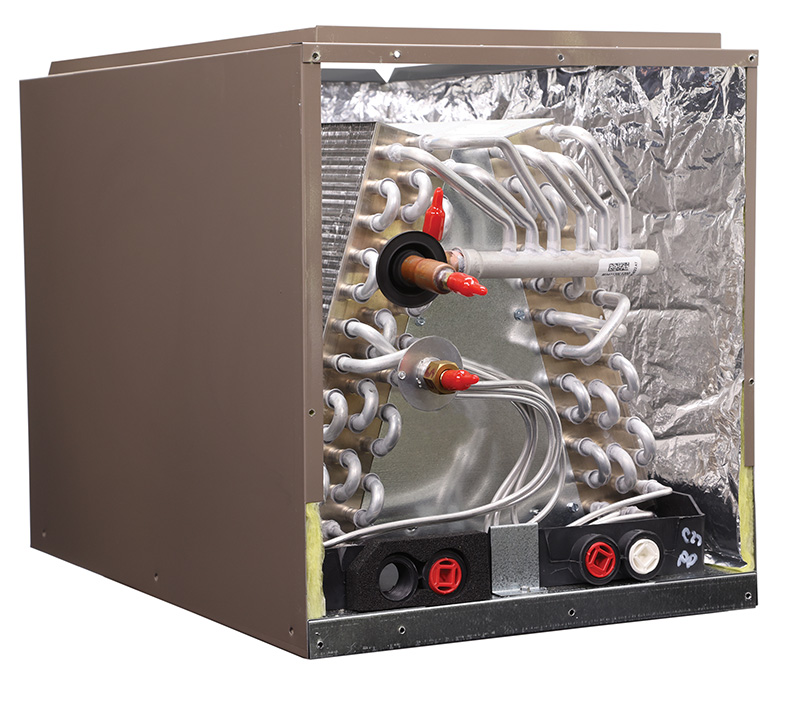

DC Series Aluminum Cased Upflow/Downflow Coils
Features and Benefits
APPLICATION VERSATILITY
• Standard Upflow without field modification. Downflow applications require field kit, sold separately.
• ETL listed for R22 and 410A. ETL listed for R454B and R32 with Refrigerant Detection System (RDS).
• A2L refrigerants require a Refrigerant Detection System (RDS) for compliance.
• AHRI certifiable with all brands of A/C and heat pump systems.
FEATURES
• Rifled aluminum tubing, enhanced aluminum fins.
• Multi-stage leak testing at 500 psi pressure decay, mass spectrometer tested with Helium, then Nitrogen pressurized and factory sealed optimal system integrity and long-term reliability.
• Heavy duty plastic or metal drain pans.
• Embossed galvanized cabinets standard. Fully insulated cabinets with faced insulation. Split access doors in front of cabinet for easy service access.
REFRIGERANT & PLUMBING CONNECTIONS:
• Left or right-hand refrigerant and plumbing connections. Condensate Drain Connections are 3/4″ NPT.
— Liquid line – 3/8” ODS
— Suction line
• 3/4” ODS on 1-1/2-ton to 3-ton
• 7/8” on 3-1/2-ton to 5-ton
WARRANTY
• Ten-year limited warranty with registration.
Notes:
(1) Do not use plastic drain pans on oil furnaces or other applications where outlet temperature may exceed 290°F +/- 5°F. Metal drain pans are recommended for this type of application.
(2) Metal drain pan.
(4) Metal drain pan applicable for 4 row coils.
