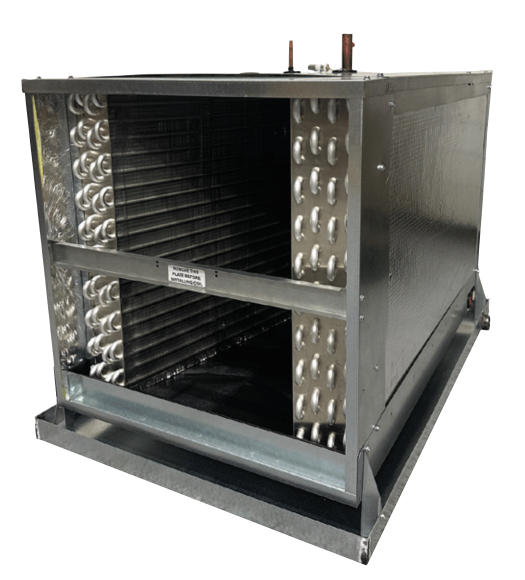

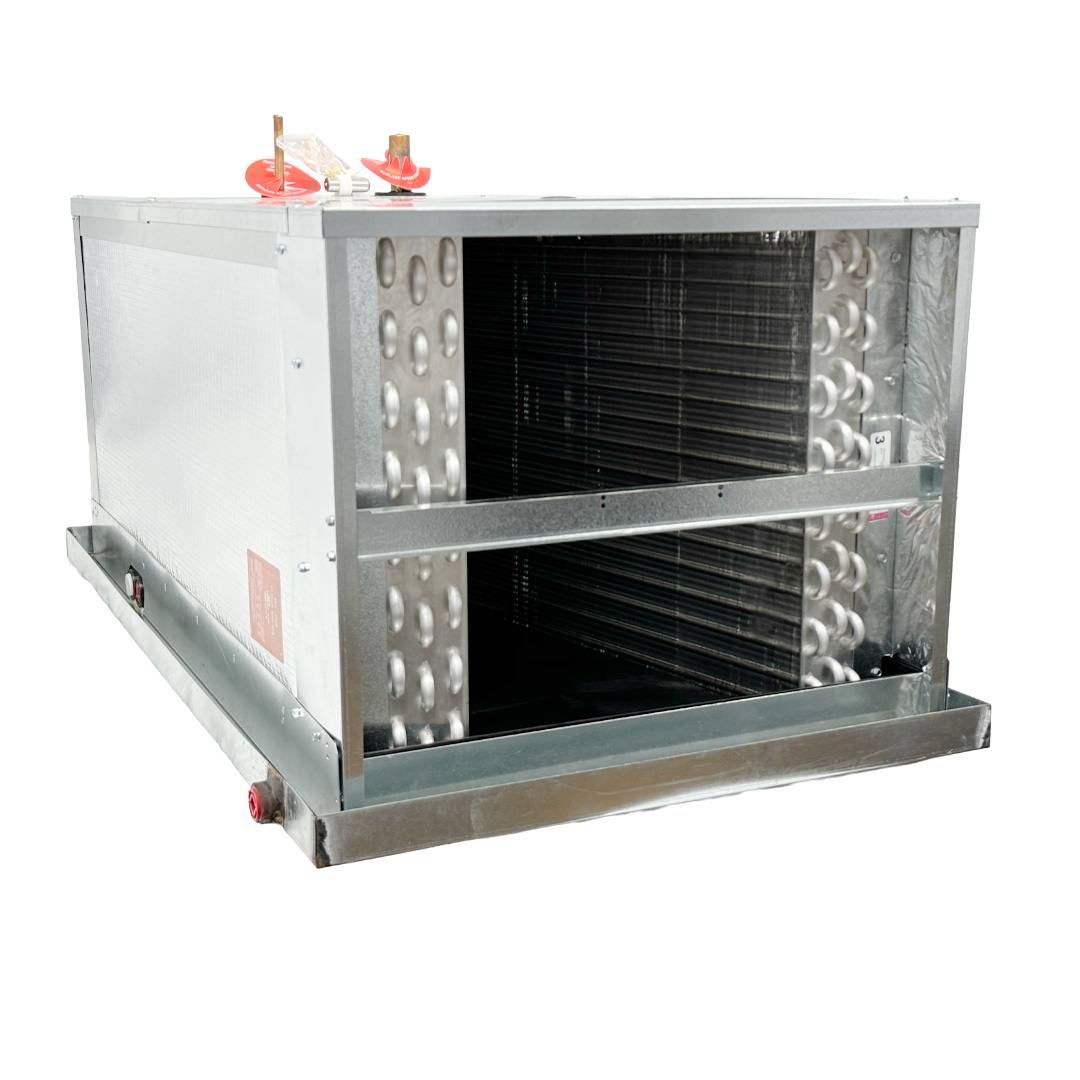

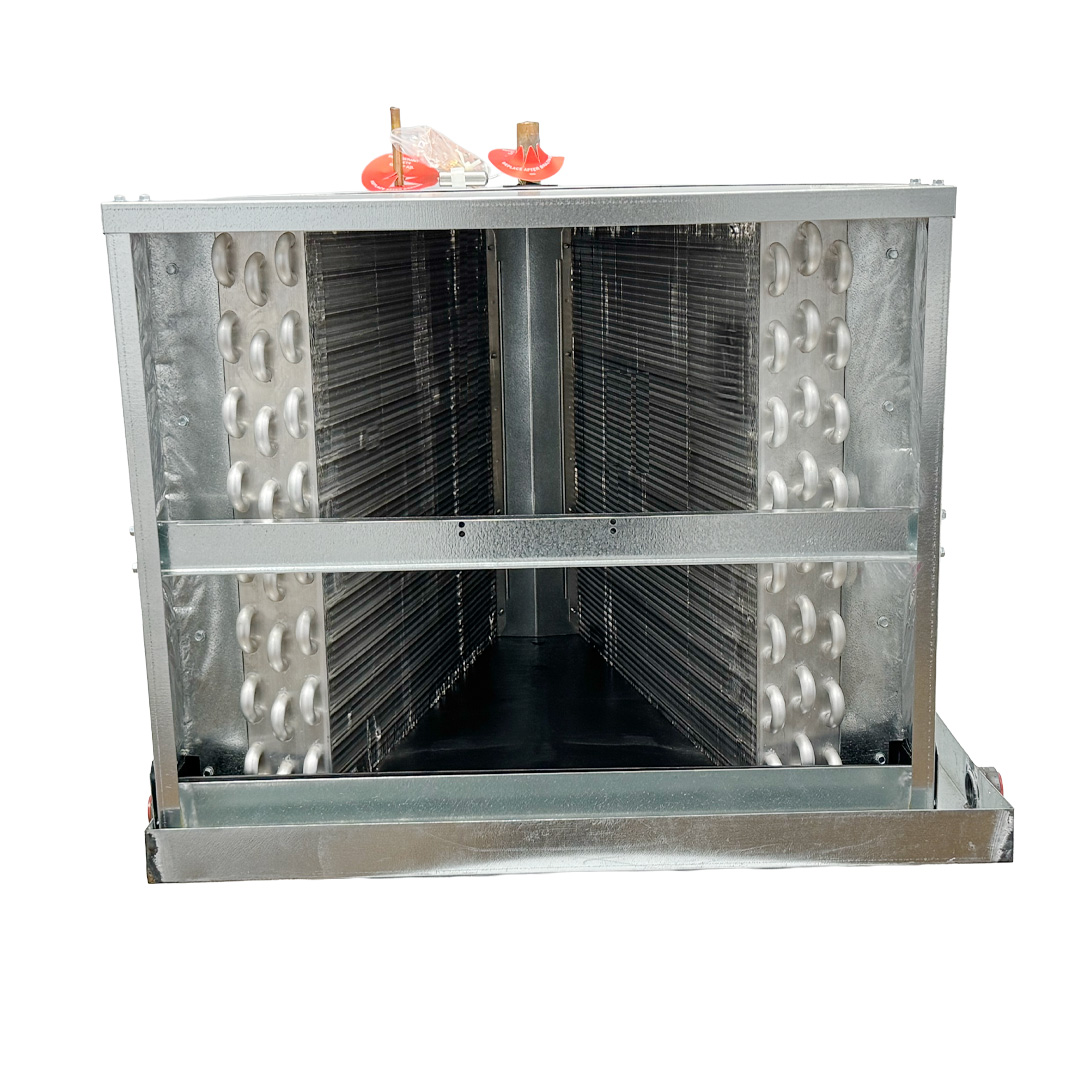

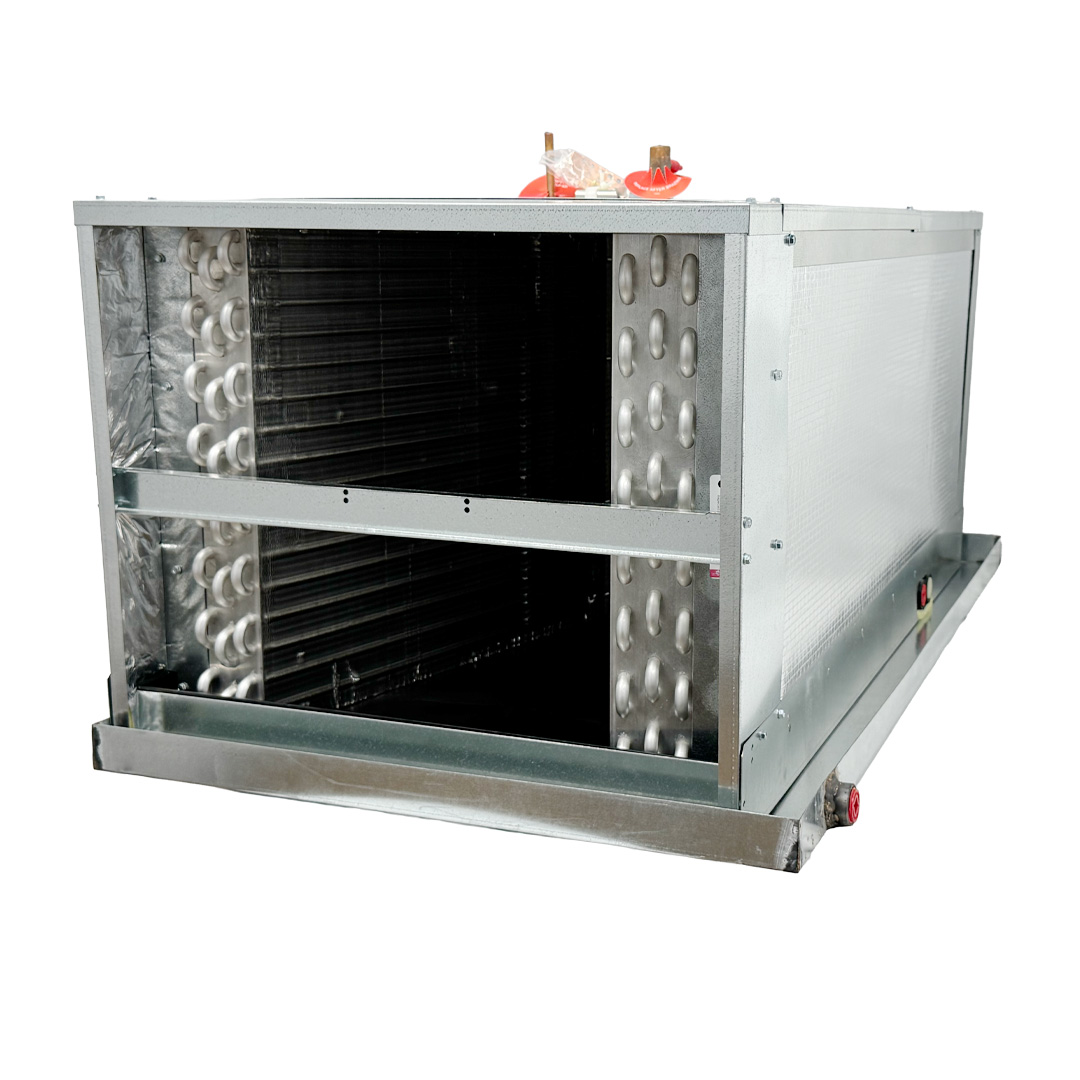

DP Series Aluminum Dedicated Horizontal Coils with Plenum
Features and Benefits
APPLICATION VERSATILITY
• AHRI certifiable with all brands of A/C and heat pump systems.
• ETL listed for R22 and 410A. ETL listed for R454B and R32 with Refrigerant Detection System (RDS).
• A2L refrigerants require a Refrigerant Detection System (RDS) for compliance.
FEATURES
• Rifled aluminum tubing, enhanced aluminum fins.
• Fully insulated cabinet with plenum sides and back constructed of foil-backed, faced, one-inch thick, fiberglass duct-board.
• Three-piece service door on top for easy service access.
REFRIGERANT & PLUMBING CONNECTIONS:
• Multi-stage leak testing at 500 psi pressure decay, mass spectrometer tested with Helium, then Nitrogen pressurized and factory sealed optimal system integrity and long-term reliability.
• Refrigerant lines exit top of coil. Schrader valve on liquid line or internally mounted factory installed TXV for pressure assurance testing. Refrigerant and plumbing connections:
• Condensate Drains: 3/4” NPT
• Liquid line: 3/8” ODS
• Suction line:
— 3/4” ODS on 1-1/2-ton to 3-ton
— 7/8” on 3-1/2-ton to 5-ton
• Heavy duty polypropylene drain pans.
• Secondary metal drain pan included with 1” spacing around the cabinet for turnkey installation.
WARRANTY
• Ten-year limited warranty with registration.
