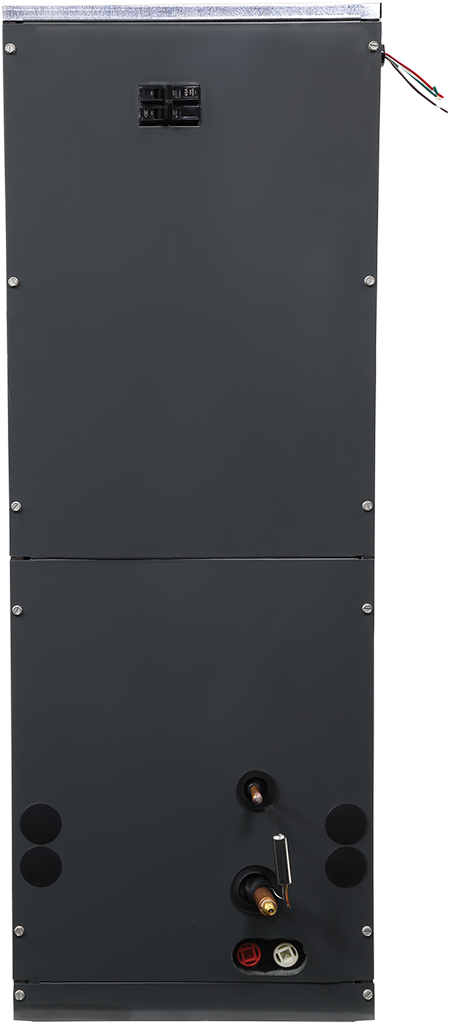

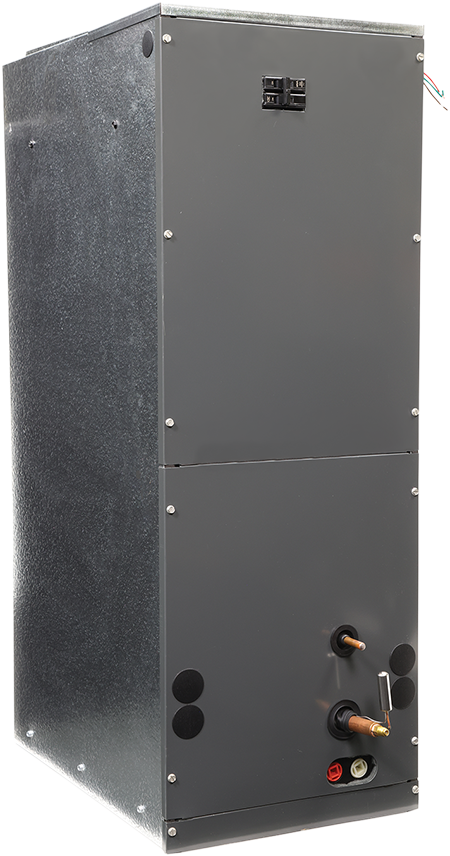

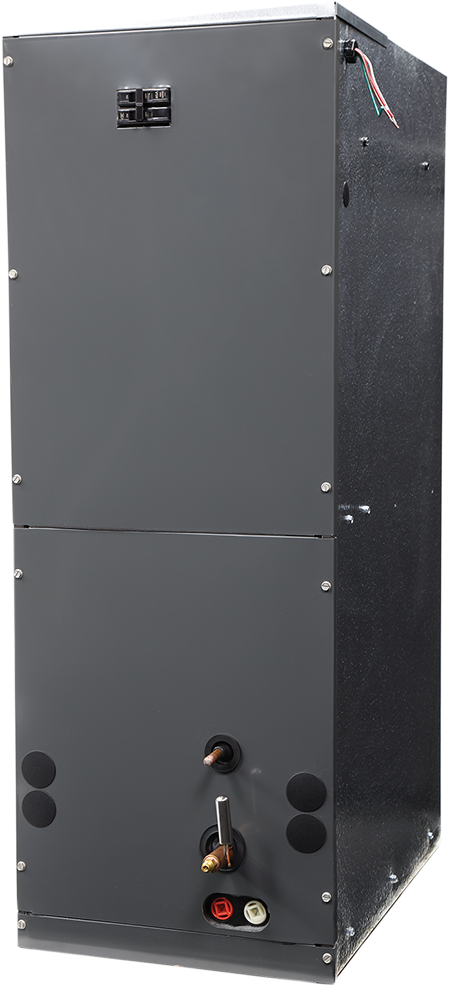

LAM Series High-Efficiency and Standard Multi-Position Aluminum Coil Air Handlers
Features and Benefits
APPLICATION VERSATILITY
Upflow or horizontal right as shipped (field-convertible for downflow or horizontal left applications). Can be AHRI certified with most brands of air conditioners or heat pumps.
• A2L refrigerants require a Refrigerant Detection System (RDS) for compliance. In accordance to UL 60335 Refrigerant DetectionSystems are factory-installed on A2L refrigerant ready air handlers.
• ETL listed for R22 and 410A. ETL listed for R454B and R32 with Refrigerant Detection System (RDS).
LOW LEAKAGE CABINET
Less than 2% air leakage from cabinet when tested in accordance with ASHRAE standard 193. Unit must be installed according to installation instructions. Sturdy, fully insulated galvanized steel cabinet with knockout for duct return.
AIR MOVING SYSTEM

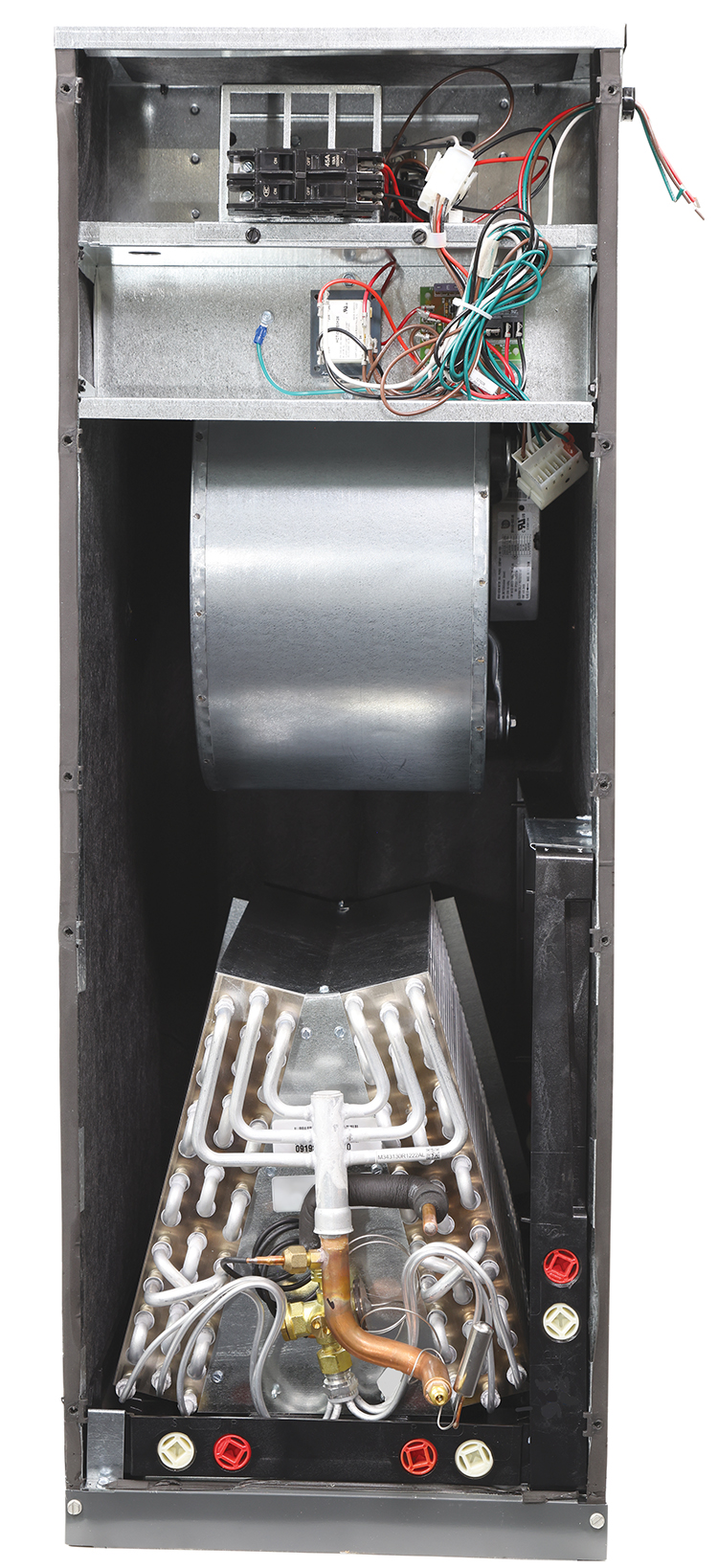

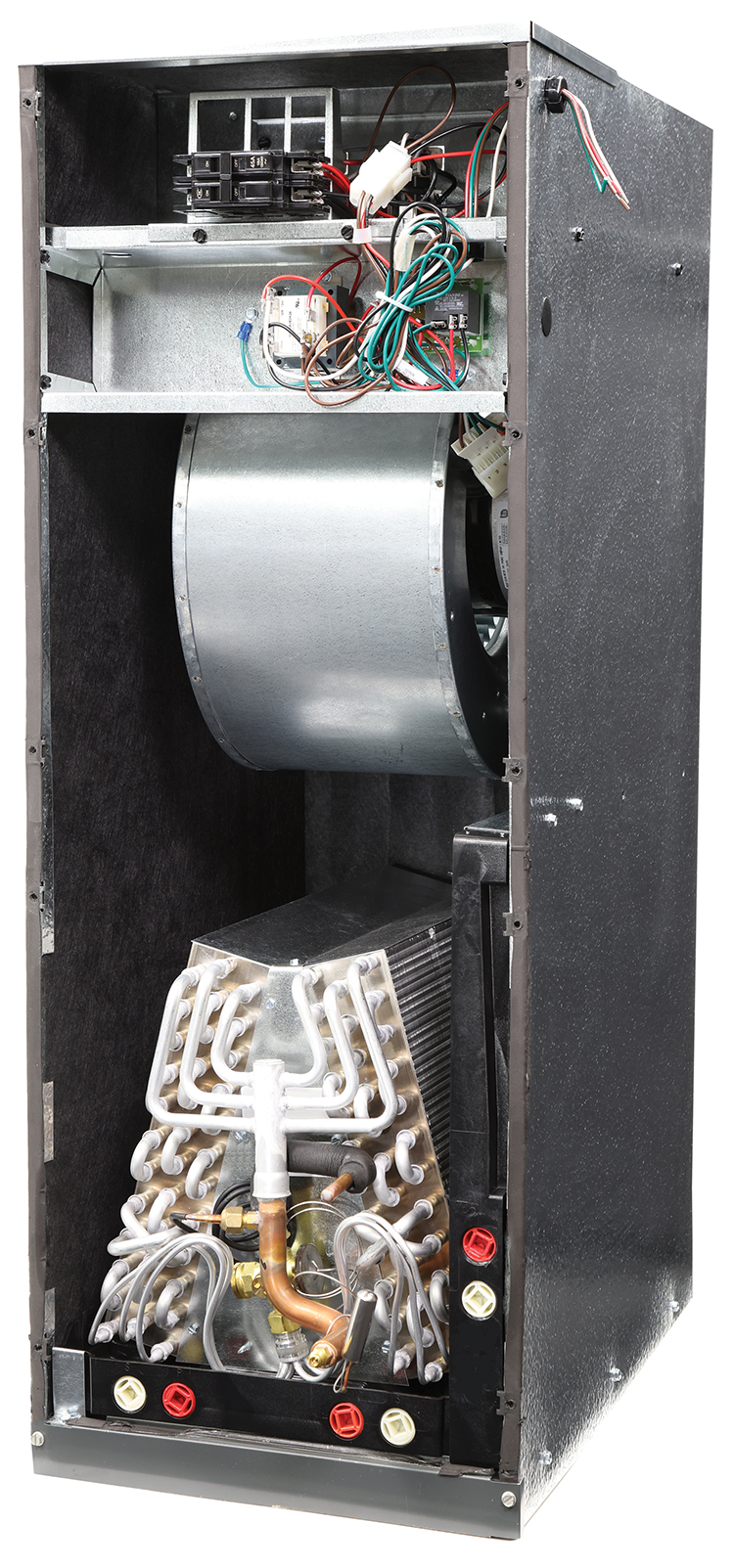

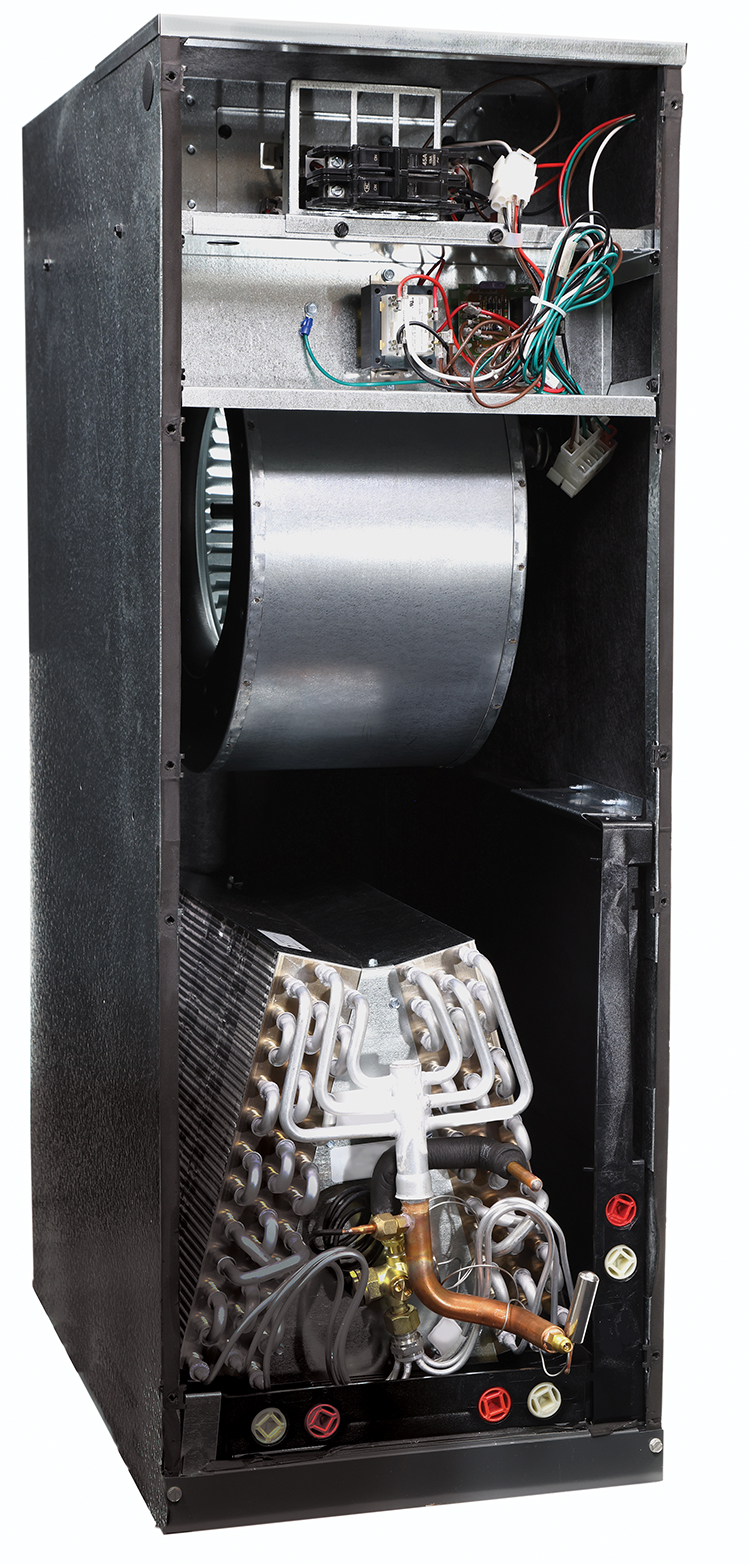

Direct drive blowers circulate air quietly and efficiently. Three-speed motors allow for precise air volume selection. Rail mounted blowers provide easy removal for service and maintenance.
ELECTRONIC CIRCUIT BOARD
An electronic board controls the functioning of the system reducing moving parts. The board provides a blower time delay to maximize heat/cool extraction and offers an integrated fuse for additional protection.
ALL ALUMINUM COIL
Multi-stage leak testing at 500 psi pressure decay, mass spectrometer tested with Helium, then Nitrogen pressurized and factory sealed optimal system integrity and long-term reliability. Available with either factory-installed orifice or TXV metering device. Field-installable bolt-on TXVs are also available. Access door allows for easy coil cleaning.
WARRANTY
Ten-year limited warranty with registration.
