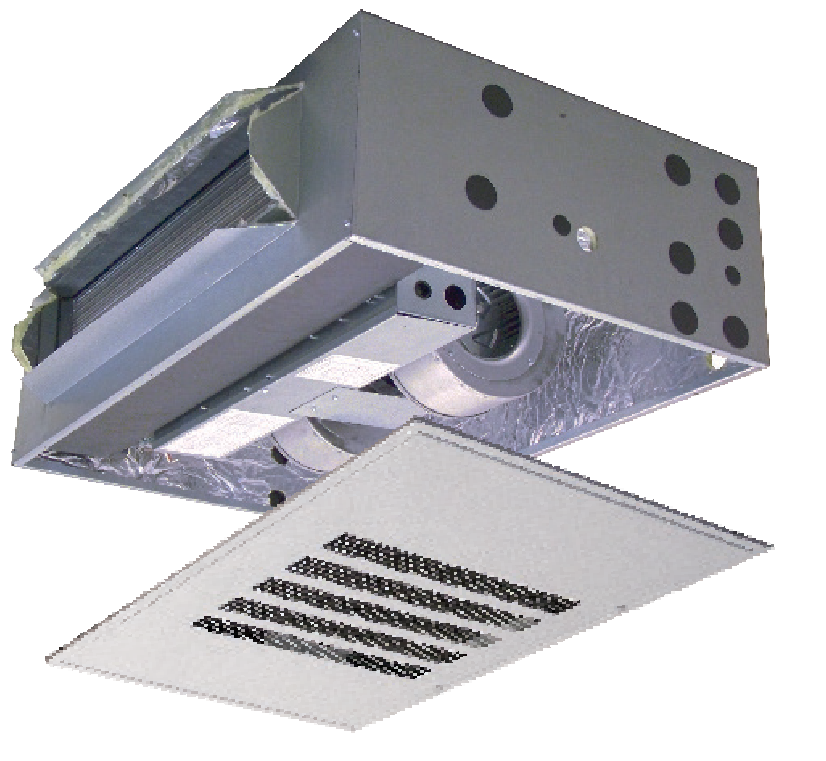

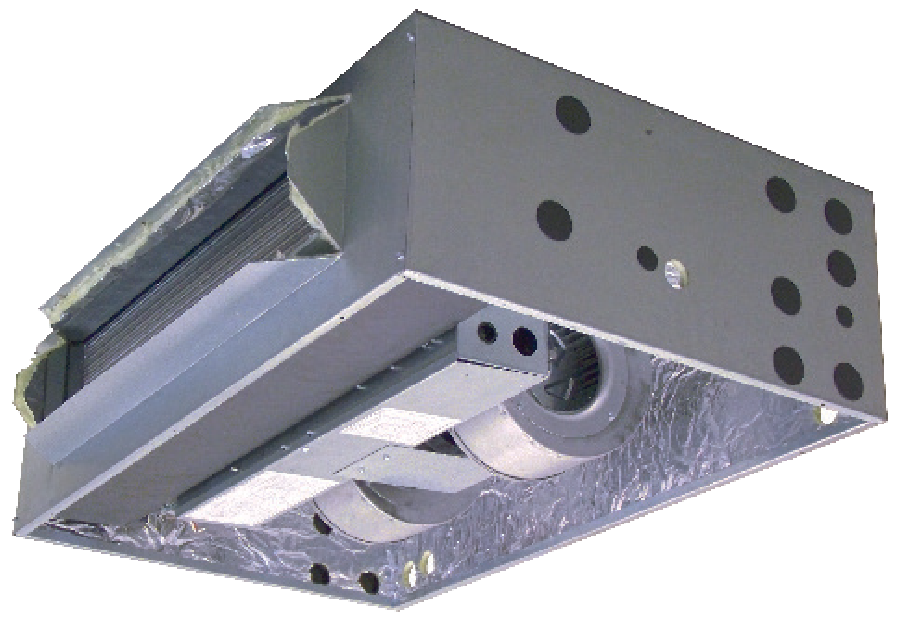

RES-RET Series Cased/Uncased Ceiling Mount Electric Heat

Features and Benefits

APPLICATION VERSATILITY
Built-in mounting tabs for ceiling or fur-down mounting. Louvered ceiling access panel has separate frame that attaches to ceiling joists. Solid access panel available for use with end return installations. Compatible with most brands of air conditioners or heat pumps. Field convertible front and bottom return. Wall hanging bracket included standard.



• A2L refrigerants require a Refrigerant Detection System (RDS) for compliance. In accordance to UL 60335 Refrigerant Detection Systems are factory-installed on A2L refrigerant ready air handlers.
• ETL listed for R22 and R410A. ETL listed for R454B and R32 with Refrigerant Detection System (RDS).
• A1 (R410A and R22) products manufactured in 2025 or later will be labeled as “For servicing existing equipment only”.

240V 5-Speed ECM MOTOR
Pre-programmed, 5-speed, 208V/240V ECM motors that ensure higher efficiency and increased energy savings by delivering constant torque during operation. Motors are pre-programmed with speeds and torques at the factory for optimal performance and reliability. Direct drive blowers circulate air quietly and efficiently. Rail mounted blowers provide easy removal for service and maintenance.

LOW LEAKAGE CABINET
Less than 2% air leakage from cabinet when tested in accordance with ASHRAE standard 193. The unit must be installed according to AspenPro installation instructions. A sturdy, fully insulated galvanized steel cabinet with knockout for duct return.

ELECTRONIC CIRCUIT BOARD
The electronic circuit board provides 30 seconds ON/OFF blower time delay extracting more heating/cooling from the coil.

DX COIL
High-efficiency rifled aluminum tubes and enhanced aluminum fins provide maximum heat transfer. All coils factory leak tested with two-stage pressure decay and mass spectrometer process, then nitrogen pressurized and factory sealed for maximum reliability. Available with either orifice or TXV metering device, factory installed. Field-installable bolt-on TXVs are also available. Primary and secondary condensate drain. All drain connections are ¾” NPT. Power-painted metal drain pan. The access door allows for coil cleaning.

ELECTRIC HEAT KITS
Heat kits are available in 3 kW to 10 kW. Models with electric heat include sequencers and temperature limit switches for safe, efficient operation. Easily accessible controls for quick service and maintenance.
